LED照明　害虫防除用（T10)仕様

SPECIFICATION

Item	Specification
	Wavelength(nm)	590nm
	Illumination(lux)	230 @ 1m
	Input Frequency(Hz)	50/60
	Input Voltage(v)	AC 100V〜240V
	Power Factor	0.9↑
Electrical	Power Consumption(Tolerance 10%)	21w
	Dimensions(mm)	32 x L1198
	Weight	450g±5g
	Housing	AL/PC
Physical	Base	G13
	Operating Temperature	-20℃ 〜 65℃

PHOTOMETRICS

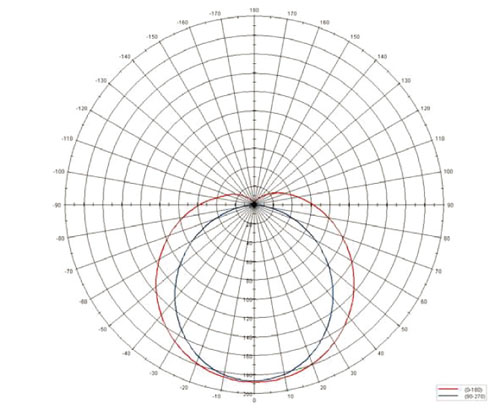

Polar distribution

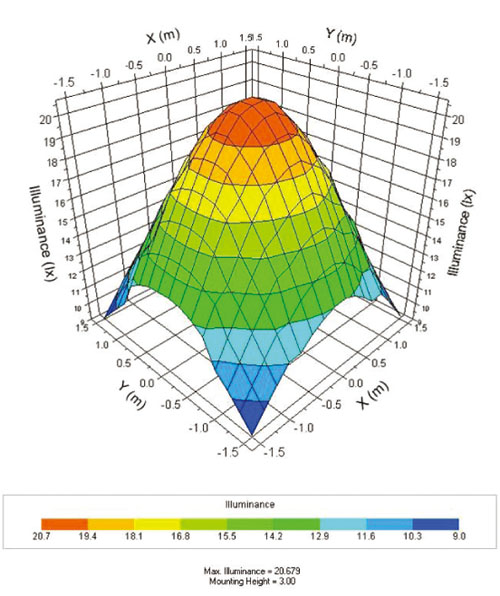

3DLux Web

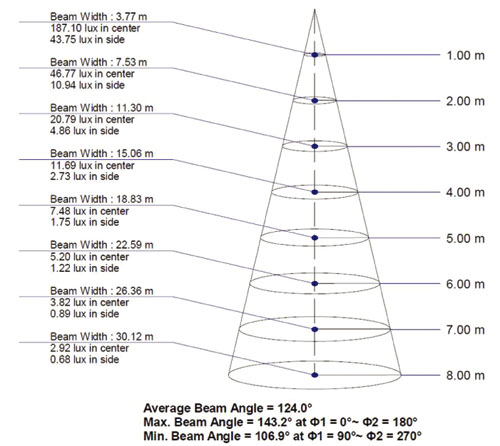

Conical illuminance

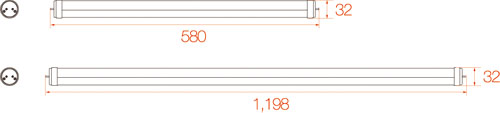

PHYSICAL DIMENSION

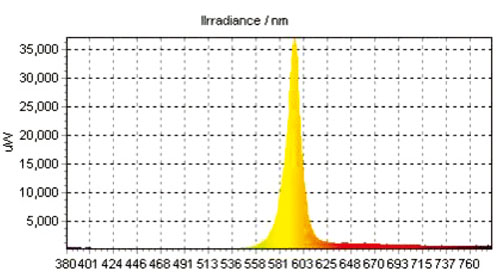

SPECTRUM
