LED照明　花弁栽培用(BULB)仕様　

SPECIFICATION

Item	Specification
	Module Configuration	Deep Red
	LED Spec,(CCT or Wp)	650〜670nm
	PPFD (@30cm) (umol/(m2/sec)	10
	Input Frequency(Hz)	50/60
	Input Voltage(v)	AC 100V〜240V
Electrical	Power Factor	0.9↑
	Power Consumption(Tolerance 10%)	6.5w
	Dimensions(mm)	60ΦX 116
	Weight	190g±5g
Physical	Housing	AL/PC
	Beam Angle	140ﾟ
	Operating Temperature	-10℃ 〜 40℃

PHOTOMETRICS

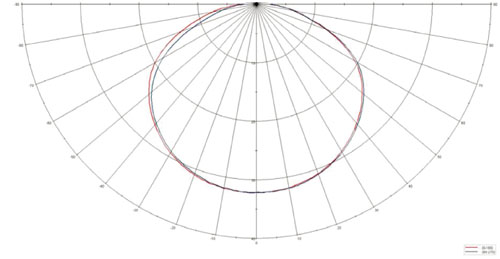

Polar distribution

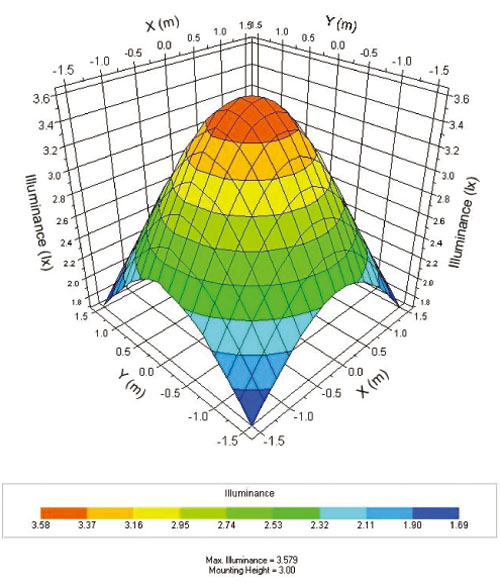

3DLux Web

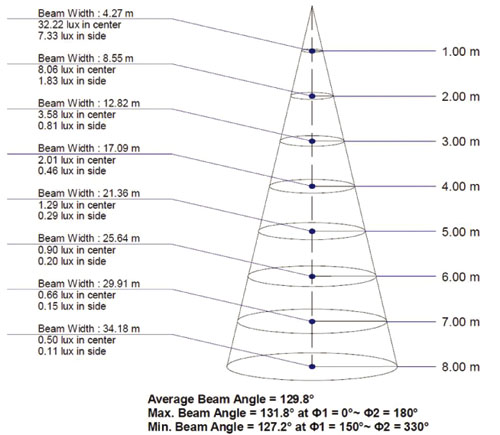

Conical illuminance

PHYSICAL DIMENSION

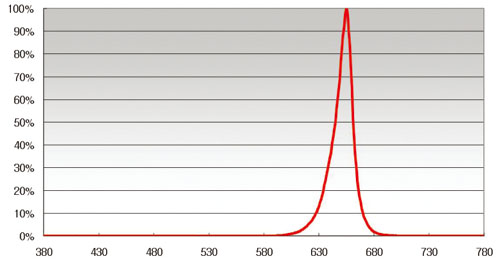

SPECTRUM
