LED照明　葉菜類栽培用仕様

SPECIFICATION

Item	Specification
	Module Configuration	Warm White CRI90 +Deep Red(4:1)
	LED Spec,(CCT or Wp)	Warm White	Deep Red
		3000K	650〜670nm
	PPFD(umol.(m2/sec)	Distance 10cm	160
		Distance 20cm	120
Electrical	Input Frequency(Hz)	50/60
	Input Voltage(v)	AC 100V〜240V
	Power Factor	0.91
	Power Consumption(Tolerance 10%)	21W
Physical	Dimensions(mm)	32ΦX L1198
	Weight	490g±5g
	Housing	AL/PC
	Base	G13
	Operating Temperature	-20℃ 〜 65℃

PHOTOMETRICS

Polar distribution

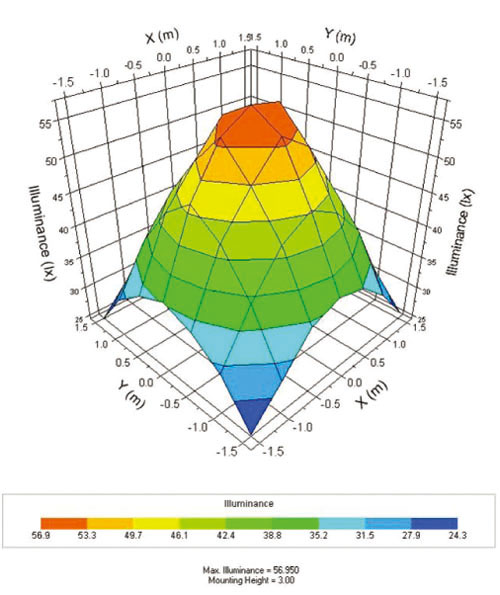

3DLux Web

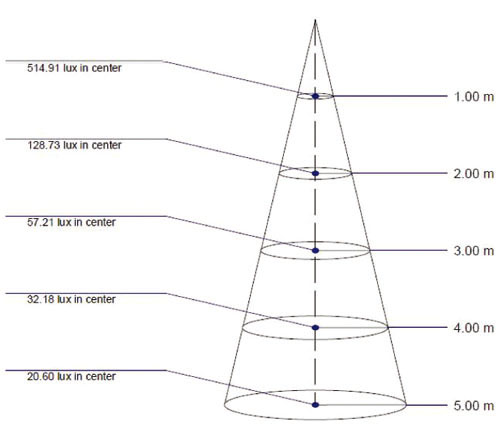

Conical illuminance

PHYSICAL DIMENSION

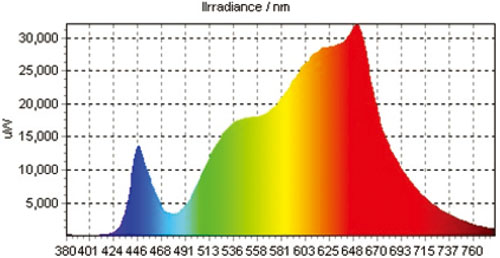

SPECTRUM
